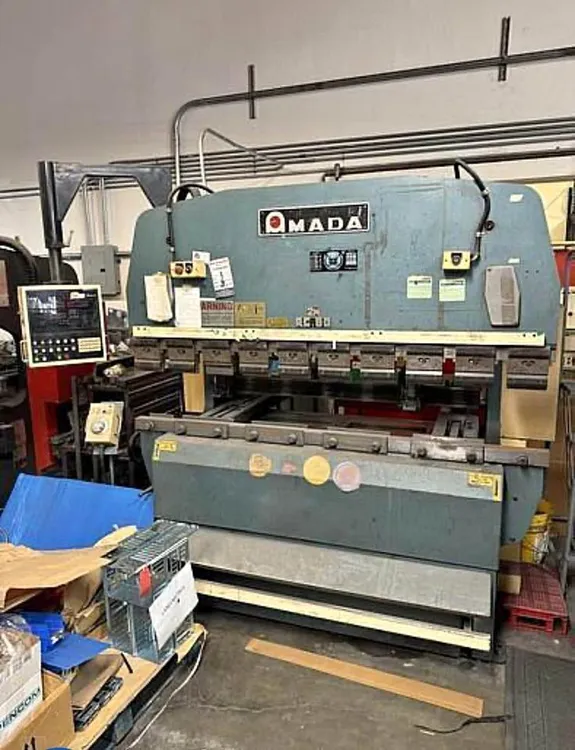

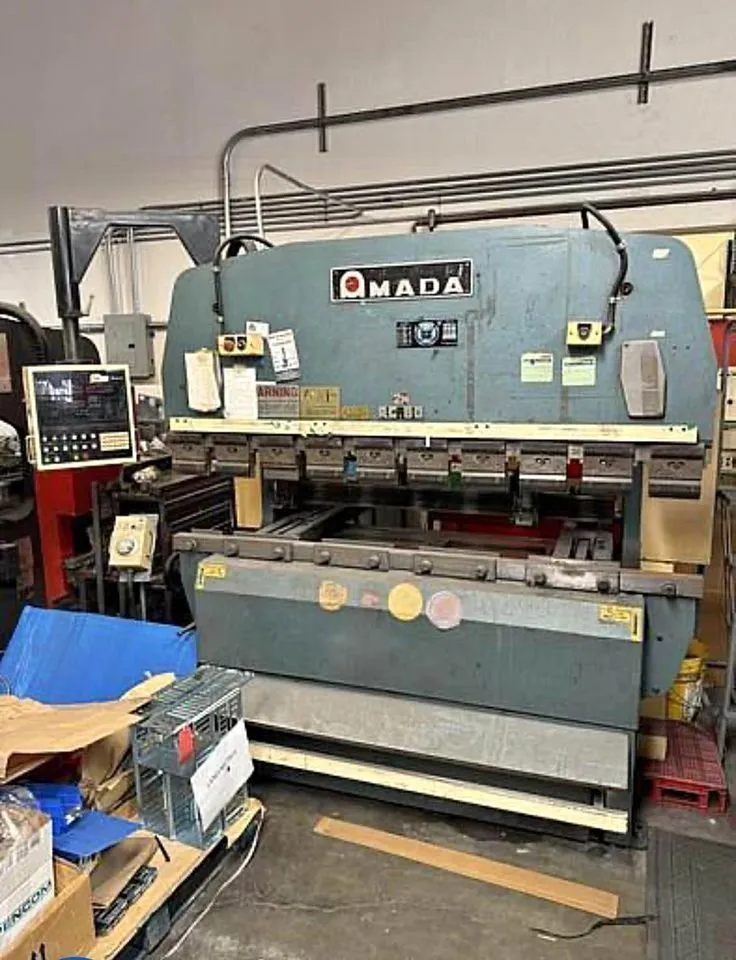

Amada Model RG-50 CNC Hydraulic Press Brake
Press Brakes-Hydraulic Power
| Tonnage | 55 T |
| Type | HYD |
| Overall Length | 6' |
| Between Housings | 59.84" |
| Stroke | 39.3" |
| # Axis | 3 |
Amada Model RG-50 CNC Hydraulic Press Brake
Specifications and Equipment
Nominal rated capacity: 55 Tons (US)
Metric Tons: 50
Overall length of bed and ram: 79"
Distance between housings: 59.84"
Depth of throat: 15.7"
Open height, over bed: 14.57"
Rapid approach speed: 108 IPM
Pressing speed: 19.8 IPM
Rapid return speed: 82.8 IPM
Hydraulic tank reservoir: 13.4 Gallons
Current Electrical Arrangement:
CNC Type: Amada Model NC9EX
Equipped With
