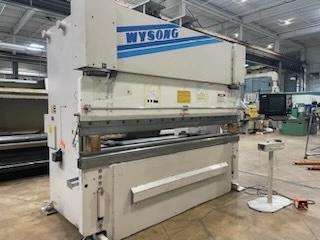

Wysong PHS 175-120 7-Axis CNC Hydraulic Press Brake (1997)
Press Brakes-Hydraulic Power
| size | 10' |
| Tonnage | 175 T |
| Overall Length | 120" |
| Between Housings | 102" |
| Stroke | 8" |
| # Axis | 7 |
| Dimensions | 132" x 86" x 114" |
| Weight | Approx. 23,500 |
WYSONG MODEL PHS175-120 7-AXIS CNC HYDRAULIC PRESS BRAKE
SPECIFICATIONS:
Press Force - 175 Tons
Overall Length of Bed and Ram - 120"
Distance Between Housings - 102"
Travels
R - Axis - 8"
X1 _ Axis - 20" (Flip-up Stop Arms For Standard Flanges)
X2 - Axis - 20" (Fixed Location Stops for Large Flanges 24" and Greater)
Y1 - Axis - 8"
Y2 - Axis - 8"
Z1 - Axis - 39" from Center
Z2 - Axis - 30" from Center
Open Height - 17"
Closed Height - 9"
Stroke - 8"
Programmed Tilt of Ram .625"
Throat Depth - 10"
Speeds
Approach - 300 IPM
Press - 22 IPM
Return - 225 IPM

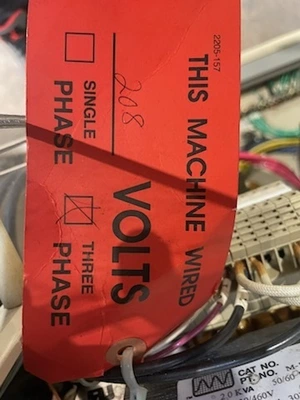

Electrical -
Motor Driven with 20 HP
3-Phase, 60 Cycle
AC Motor and Controls
Updated Controls in 2009
Approximate Dimensions - 132" x 86" x 114" H
Approximate Weight - 23,500 Lbs.
PC800 CNC Controls, Pedestal Mounted Controls, 4-Axis Back Gauge,, Y1 Axis, Y2 Axis, Crowning
