| size | 15" chuck |
| Swing | 30.3" |
| Machining Length | 44.7" |
| Chuck Size | 15" |
| Bar Capacity | 6.5" |
| Power | 50 hp |
| Max RPM | 1,500 RPM |
| Turning Dia | 21.7" |
| Tailstock | Yes |

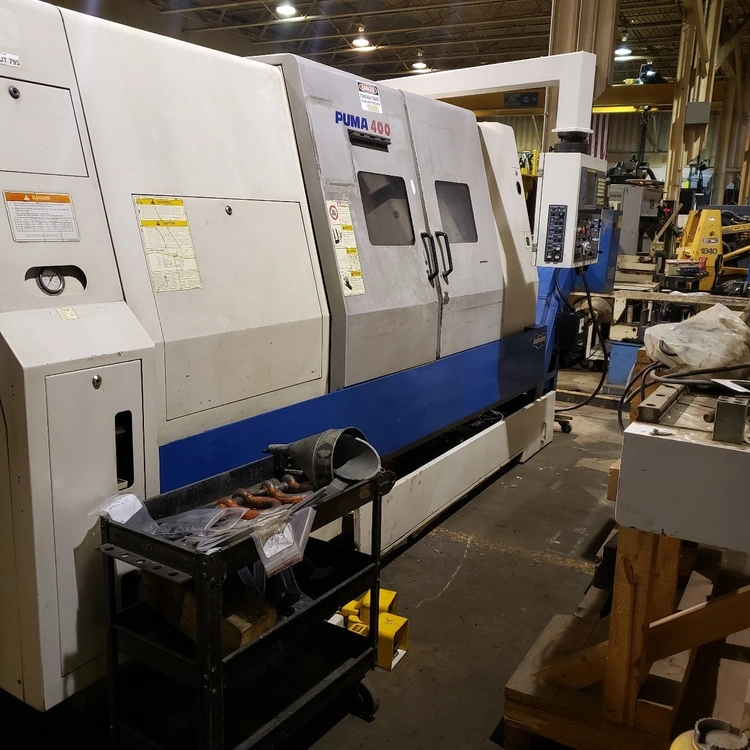

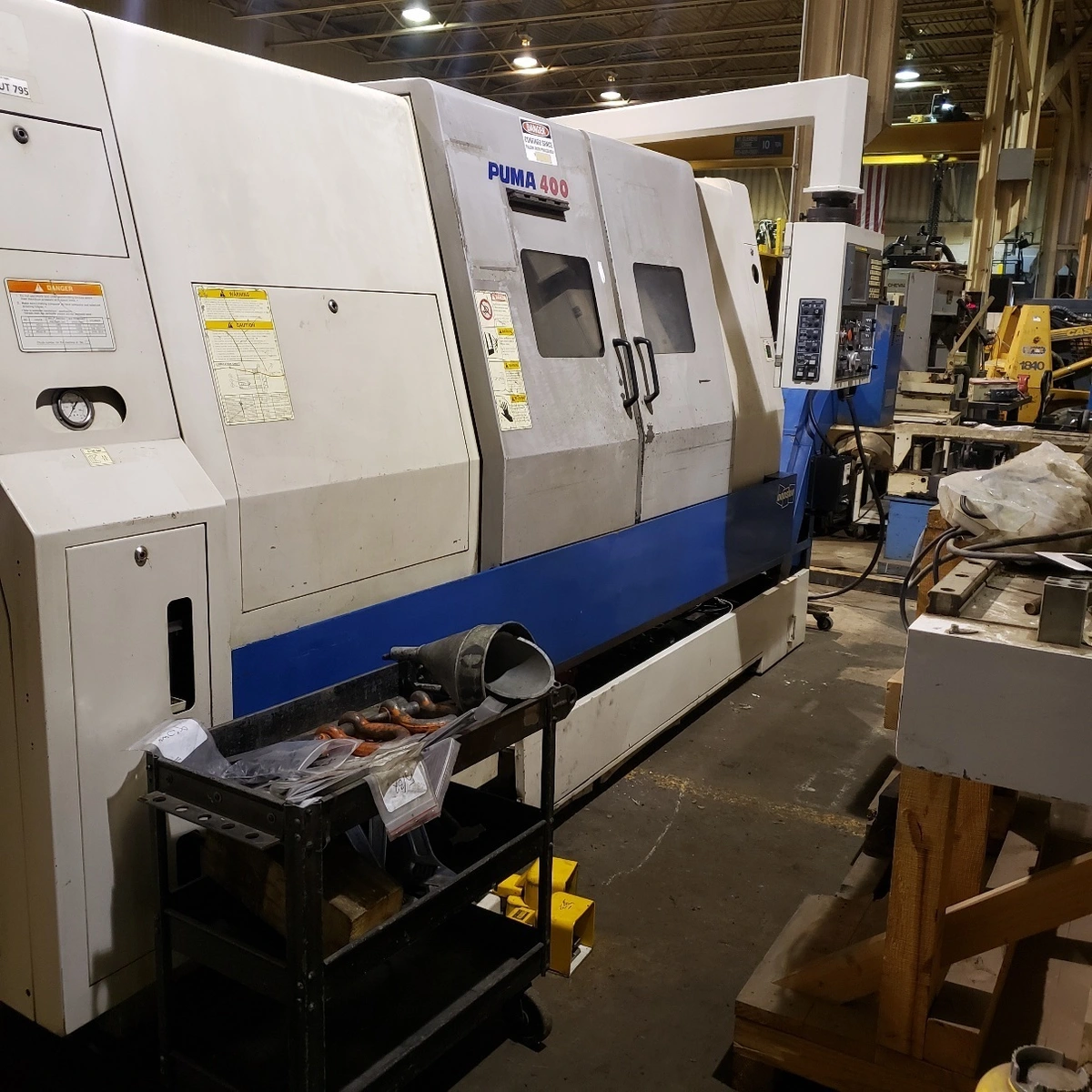

Doosan Puma 400C CNC Lathe (2007)
Swing Over Bed: 27.5″
Swing Over Saddle: 23.2″
Max Machining Length: 40.3″
Max Machining Diameter: 21.6″
Distance Between Centers: 44.7″
X-Axis Travels: 14.3″
Z-Axis Travels: 43.5″
Spindle Speed: 15 – 1,500 Rpm
Spindle Bore / Bar Capacity: 7.12″ / 6.55″
Spindle Motor: 50 Hp
Turret Stations: 12
Turbo Systems Chip Conveyor Model
15" Schunk Hyd .Chuck
Tailstock
Fanuc 21itb Cnc Control
